First images of fuel debris fallout particles from Fukushima Daiichi

The sample image shown above is 270µm in height and 540µm in widthDiamond Light Source

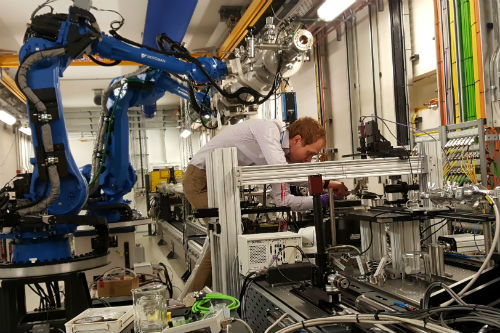

Dr Peter Martin in one of the ‘beamline’ facilities at Diamond Light Source Diamond Light Source

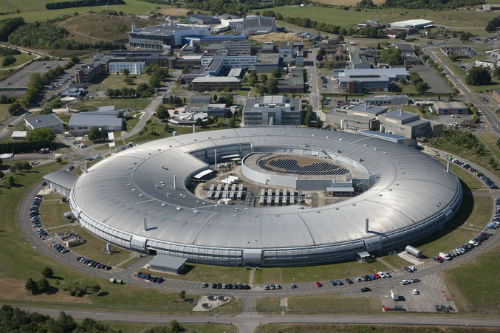

The Diamond Light Source facility in Harwell, OxfordshireDiamond Light Source

Press release issued: 7 March 2019

A joint UK-Japan team has used innovative visualisation techniques to analyse forensic materials in order to understand the sequence of events of the Fukushima nuclear accident.

In April 2017, the joint team comprising the University of Bristol, Diamond Light Source (Diamond) and the Japan Atomic Energy Agency (JAEA) undertook the first experiment of its kind to be performed at Diamond.

A small radioactive particle (450 μm x 280 μm x 250 μm) from the Fukushima Daiichi nuclear accident in 2011 underwent a comprehensive and independent analysis of its internal structure and 3D elemental distribution, to establish the source of the material and the potential environmental risks associated with it.

Diamond Light Source is the UK’s synchrotron science facility. Shaped like a huge ring, it works like a giant microscope, harnessing the power of electrons to produce bright light that scientists can use to study anything from fossils to jet engines to viruses and vaccines. Diamond speeds up electrons to near light speeds, producing a light 10 billion times brighter than the Sun, which is then directed off into 33 laboratories known as ‘beamlines’.

The research, using Diamond’s unique combined capabilities of its I13 and I18 beamlines, sheds light on a unique combination of imaging and fluorescence measurements developed at Diamond.  This enables the examination of individual particles to reveal details about the accident and looks at the material from an environmental stability point of view alongside the associated risks.

Dr Yukihiko Satou, from the Japan Atomic Energy Agency (JAEA) explains that the JAEA is working with the team from the University of Bristol and Diamond to gain detailed information from the particles, and in turn, to learn as much as possible about the accident. He said: "We decided to bring a radioactive particle from the Fukushima fallout to Diamond to undergo a comprehensive and independent analysis of its internal structure and 3D elemental distribution because relatively little is known about the physical and chemical nature of the radioactive particles and their long-term environmental effects."

He notes that the radioactive particle brought to Diamond was collected from within the restricted zone, in an area to the north of the nuclear plant. It was encased with protective Kapton tape and brought to the I13 beamline, which offers a unique combination of X-ray imaging and fluorescence capabilities.

Professor Tom Scott from the University of Bristol's School of Physics, Interface Analysis Centre and South West Nuclear Hub, said: “We wanted to perform multiscale and multimodal measurements – by this I mean from micron to nanometre scale whilst looking at the chemistry, structure and functionality of the sample all in parallel. Diamond offers to the best of our knowledge the only beamline in the world where it is possible to perform such an analysis within a single experiment. The resulting visualisation has allowed for a comprehensive analysis of the particle.”

Principal Beamline Scientist, Dr Christoph Rau added: “In close collaboration with experts from the University of Bristol, we worked very hard to bring this experiment together. We managed to harness these imaging techniques into one single analysis to learn more about the details of the particles brought to Diamond.”

Dr Peter Martin, also from the Bristol team, said: “We were able to see that the structure and composition of the particle suggest that it was formed predominantly from materials from the reactor building, mainly silicon-based fibrous insulation. The likely scenario is that it was formed when the thermal insulation material in Reactor Unit 1 melted during the loss of cooling. Radiocaesium and other fission products were incorporated into the molten material, and fragments of the structural steel and concrete stuck to the surface after the hydrogen explosion.”

The structures observed in the particle had a remarkable resemblance to a volcanic pumice, comprising a considerable internal void volume. The pumice-like internal structure means that the particle is susceptible to weathering and fragmentation, which would increase the effective surface area and subsequent dispersal of iron-associated radiocaesium into the environment.

Dr Martin added: “It is worth noting that the particle seems to have been stable for nearly four years – the time between being ejected from the plant and being collected for analysis. In addition, in the studied particle, the radioactive material is also encased within a glasslike silicon, analogous to the vitrification process used for the disposal of nuclear waste, which will further reduce the potential for radionuclides to leach out.”

Previous investigations of material from Chernobyl found a similar affinity between iron and caesium, causing the formation of ferrites that greatly reduce the solubility of caesium within the environment. Similarly, the uranium in the sample was observed to exist in an insoluble form, and encased within the glassy material. Building on the success of these experiments and the unique capability offered by Diamond, a consortium of UK and Japanese Universities have been awarded a joint grant by UK Research and Innovation’s Engineering Physical Sciences Research Council (EPSRC) and Japan’s Ministry of Education, Culture, Sports, Science and Technology (MEXT) to carry on the research to examine larger particles closer to the site. This will underpin the distribution of material which contains fuel debris to better define the risk map.

Professor Scott said: "The work has significant relevance beyond nuclear accidents, and this approach and the techniques developed could in the future be used to image particles in air pollution in the UK and all over the world. For example, the ‘Asian Brown Cloud’, a layer of air pollution that covers parts of South Asia for several months each year, would be of great interest as it is found to be linked to health conditions killing two million people in Asia every year2."

Further information

Additional information on the research:

On 11 March 2011, the magnitude 9.0 Great East Japan Earthquake did great damage, and was followed by a large tsunami that did considerably more. Although the three nuclear reactors at the Fukushima Daiichi Nuclear Power Plant (FDNPP) were not damaged by the earthquake, and shut down automatically, the entire site was flooded by the 15-metre tsunami, which caused a power failure and loss of cooling. Rising heat within the core of the reactors caused the fuel rods to overheat and partially melt down. A build-up of pressurised hydrogen gas caused explosions in the outer containment buildings, and radioactive material was released into the surrounding area.

Nuclear regulators assigned the highest possible severity level (7) to the incident, placing it in the same category as the Chernobyl accident in the Soviet Union in 1986. The amount of radiation released is estimated to be between 340 PBq and 800 PBq, a tenth of that released from Chernobyl1. Relatively little is known about the physical and chemical nature of the radioactive particles and their long-term environmental effects.

The research team used synchrotron radiation micro-focused X-ray fluorescence (SR-μ-XRF) and tomography (SR-μ-XRT), in combination with diffraction ptychography to investigate the internal structure of the sample. SR-μ-XRF adds chemical sensitivity, allowing the researchers to create a 3D map of the distribution of elements within the sample.


1. World Nuclear Association. Fukushima Daiichi Accident. Online: (Accessed 13 November 2018)

2. Ahmad K. Pollution cloud over south Asia is increasing ill healthLancet 360 (9332):549 (2002). DOI:10.1016/S0140-6736(02)09762-3.

About Diamond Light Source:

Diamond Light Source is the UK’s synchrotron science facility. Each year thousands of scientists use the UK’s synchrotron and its integrated facilities (eBIC, ePSIC etc.), with 57% visiting and 43% accessing the facility remotely. Diamond’s state-of-the-art facilities and world-class people act as agents of change, addressing 21st century challenges such as disease, clean energy and food security. Diamond research supports new medicines, technologies and advances of all kinds. More than 7,000 papers have been published because of research conducted at the facility.
